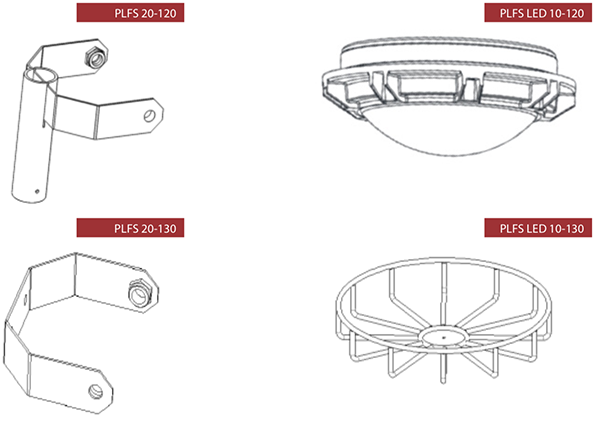

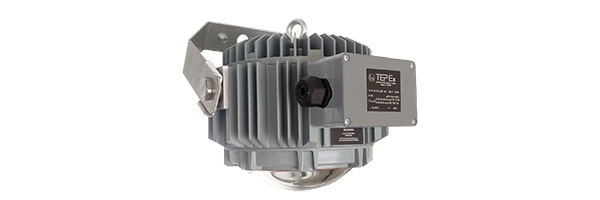

PLFS-N 100 LED Ex db eb op is IIC T6 GbEx tb op is IIIC T80°C Db Do pobrania Data sheet Manual Photometry ATEX Certificate LED light fitting destined to work in 1,21 and 2,22 of explosion hazard zones. Light fitting is equipped with eliptical diffuser and mounting bracket as a standard. Technical data Dimensions Accessories Technical data Dimensions Accessories Technical data TECHNICAL DATA: Light source: LED modules PHOTOMETRY Long lifetime: >70 000 hours Protection class: I Protection degree: IP66 Ambient temperature: od -40°C/-20°C do +40°C/+50°C IK: 08 CONSTRUCTION: Housing: aluminium cast Diffuser: borsilicate glass MOUNTING: Light fitting designed for suspending ELECTRICAL UNIT: Voltage: 90-305V AC, 127-431 V DC Terminal block: L1, L2, L3; max 2x2,5 mm2 terminal PE; max 2x6mm2 CERTIFICATE: FIDI 19 ATEX 0031 Dimensions TYPE H H1 D D1 PLFS LED 240 320 268 240 Accessories
