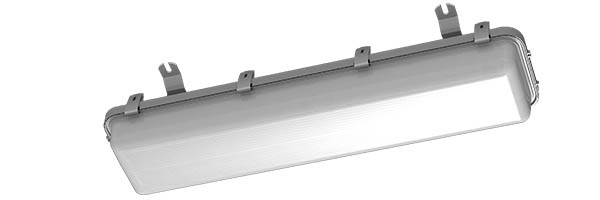

| Water and dust proof industrial light fitting with LED modules characterised by resistant to UV polycarbonate diffuser and housing as well as stainless steel clamps. |
Technical specification
| TECHNICAL DATA: | Light source: | LED modules | PHOTOMETRY | ||
| Protection class: | I |  |
|||
| Protection degree: | IP66, IP67 | ||||
| CRI: | > 80 | ||||
| Power factor: | ≥ 0,95 | ||||
| Long lifetime: | > 70.000h L80B10 | ||||
| Colour temperature: | 4000K | ||||
| Ambient temperature: | od -25°C do +45°C | ||||
| CONSTRUCTION: | Housing: | uv resistant polycarbonate | |||
| Diffuser: | uv resistant polycarbonate | ||||
| Mounting tray: | galvanized steel sheet, powder painted | ||||
| Clamps: | stainless steel | ||||
| MOUNTING: | Luminaire for direct installation on ceiling or wall with use of mounting bracket. | ||||
| ELECTRICAL UNIT: | Voltage: | 230V, 0/50-60Hz | |||
| Terminal block: | 3x2.5 mm2 | ||||
