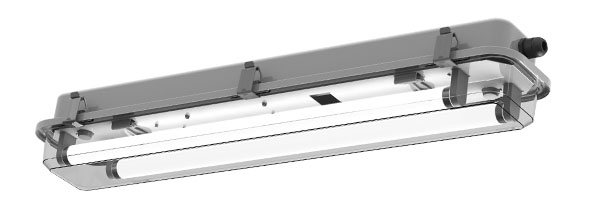

| Waterproof and dust proof industrial luminaire for T5 and T8, characterized by a housing made of galvanized steel or stainless steel and durable polycarbonate diffuser. The luminaire designed for heavy operating conditions. |
Technical specification
| TECHNICAL DATA: | Light source type: | T8, T5 | PHOTOMETRY | ||
| Lampholder | G13, G5 |  |
|||
| Protection class: | I | ||||
| Protection degree: | IP66, IP67 | ||||
| Power factor: | ≥ 0,85 | ||||
| Ambient temperature: | from -25°C to +50°C | ||||
| IK: | 10 | ||||
| CONSTRUCTION: | Housing: | pressed galvanized steel sheet, powder painted | |||
| Diffuser: | polycarbonate UV stabilized | ||||
| Mounting plate: | galvanized steel sheet, powder painted | ||||
| MOUNTING: | Luminaire for direct installation on ceiling, wall or suspending. | ||||
| ELECTRICAL UNIT: | Terminal block: 3x4 mm2 | ||||
| CERTIFICATE: | PKP PLK approval | ||||
