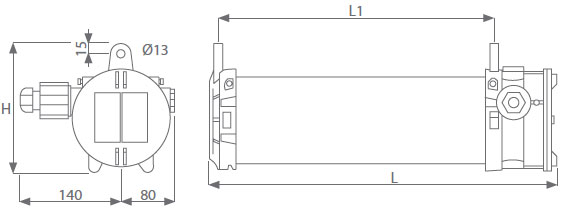

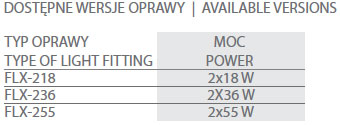

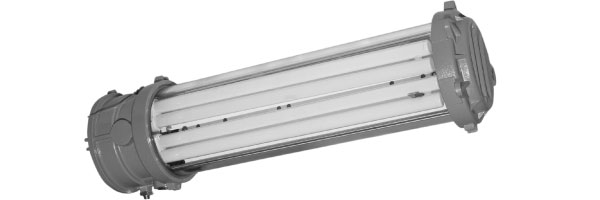

FLX II 2G Ex de IIC T5-T6II 2D Ex tD A21 IP66/67 T90°/T80°C Download Data sheet Manual ATEX certificate Photometry Photos Durable, explosion proof pipe light fitting with IP66 and IP67 designed to illuminate 1.21 & 2.22 EX zones. The body is made of borosilicate glass, aluminum endcaps. Technical data Dimensions Available versions Accessories Technical data Dimensions Available versions Accessories Technical data TECHNICAL DATA: Light source: T8 PHOTOMETRY Lampbase: G13 Protection class: I IK: 08 Protection degree: IP66 Ambient temp.: from -20°C to +50°C CONSTRUCTION: Housing: aluminium cast Diffuser: borosillicate glass MOUNTING: Luminaire mounted with use of mounting holes ∅13mm or bracket. ELECTRICAL UNIT: Ballast: 100-280V 0/50/60Hz electronic Cable gland: 1 x M25, 1 x blanking plug Cable diameter: ∅ 6-15 mm Terminal block: 3x4 mm2 CERTIFICATES: CESI 06 ATEX 051 Dimensions TYPE L L1 H FLX-218 330 215 177 FLX-236 520 405 177 FLX-255 645 530 177 Available versions NOTICE Luminaires available in ending or cross wiring version. Temperature class for Ta<40°C - T6, dla Ta<50°C - T5. Accessories TYPE Protective grid (set) External reflector Junction box ADP 23 EEx de M20/M25 Assembly kit for quick fixing Assembly kit for 1”1/2, 1”1/4 pipes Assembly kit for 2” pipes Assembly kit fo ceiling mounting
