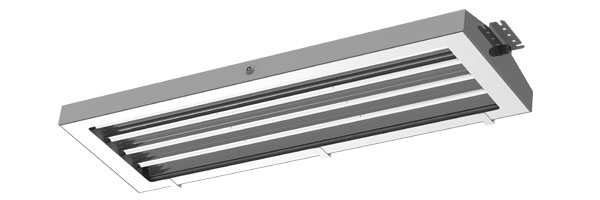

EXL320 II 3G Ex nA IIC T4 GcII 3D Ex t IIIC T80°C IP65 Dc Download Data sheet Manual EU Declaration Photometry Explosion proof luminaire for linear fluorescent T5 and T8 designed to light in Zone 2,22 of explosion hazardous area. The housing is made of stainless steel or galvanized steel, polycarbonate diffuser. Technical specification Dimensions Types comparison Accessories Technical specification Dimensions Types comparison Accessories Technical specification TECHNICAL DATA: Light source type: T8, T5 PHOTOMETRY Lampholder G13, G5 Protection class: I Protection degree: IP65 Power factor: ≥ 0,95 Ambient temperature: from -20°C to +45°C CONSTRUCTION: Housing: galvanized steel sheet, powder painted Diffuser: tempered glass Mounting plate: galvanized steel sheet, powder painted Reflector: polished aluminium MOUNTING: Luminaire for direct installation on ceiling, wall or suspending. ELECTRICAL UNIT: Terminal block: 3x4 mm2 Luminaire equipped with central lock system. Dimensions T5 VERSION TYPE L L1 B H EXL320 - 224 730 654 311 105 EXL320 - 228/254 1330 1254 311 105 EXL320 - 424 730 654 411 105 EXL320 - 428/454 1330 1254 411 105 T8 VERSION TYPE L L1 B H EXL320 - 236 1388 1312 415 128 EXL320 - 258 1688 1612 415 128 EXL320 - 336 1388 1312 563 128 EXL320 - 358 1688 1612 563 128 Types comparison 36/58 - T8 fluorescent lamp, G13 lampholder 24/54 - T5 fluorescent lamp, G5 lampholderNB - narrow beam reflectorWB - wide beam reflectorA3 - version of light fitting is equiped with internal power supply module capable of continuous work in emergency mode, for at least three hours, in case of mains failure Accessories
