0403.24 LED

II 2G Ex eb mb op is IIC T6 Gb
II 2D Ex tb op is IIIC T80°C Db

	Download
	Data sheet
	Manual
	Photometry

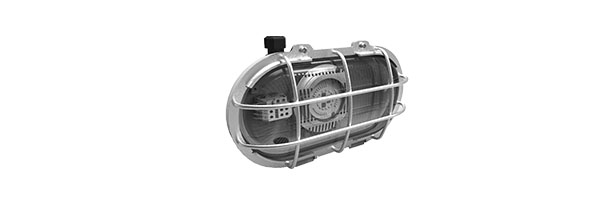

LED bulkhead light fitting destined to work in 1,21 and 2,22 of explosion hazard zones. Compact dimension makes it a great choice for small rooms or corridors lighting. Light fitting equipped with steel protective grid as a standard.

Technical data

TECHNICAL DATA:	Light source:	LED modules	PHOTOMETRY
	Protection class:	I
	IK:	08
	Protection degree:	IP66
	Long lifetime:	>70 000 hours
	Luminosity flux:	1575lm
	Ambient temperature:	od -30°C do +50°C

BUDOWA:	Housing:	aluminium cast
	Diffuser:	borosilicate glass

MOUNTING:	Light fitting for direct installation with use of brackets.

ELECTRICAL UNIT:	Voltage:	230V AC, 50Hz (48-230VAC/DC ±15% autonomous power supply / on request
	Terminal block:	4 mm²

CERTIFICATES:	FIDI 19 ATEX 0059
